Produktbeschreibung

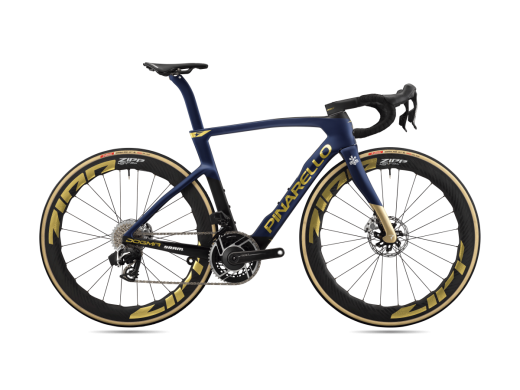

DESIGN THE EXCEPTIONAL
We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
WEIGHT
6.63kg. Weight in size 53, SRAM RED Etap, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
SRAM Red ETAP AXS 12S 48-35 with Powermeter
FRONT DERAILLEUR
SRAM Red ETAP AXS 12S
REAR DERAILLEUR
SRAM Red ETAP AXS 12S
CASSETTE
Sram Red XG-1290 10-33
BOTTOM BRACKET
SRAM Red
BRAKES
FRONT BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Prologo Nago R4 Nack Carbon
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Vittoria Corsa PRO 28mm
WHEELSET DISC
ZIPP 454 NSW Gold Decals
AXLES DISC
NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black
Geometries
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 407 | 102 | 67 | 47 | 373 | 351.5 | 502 |
| 450 | 465 | 515 | 74.4 | 70.5 | 407 | 109 | 72 | 47 | 373 | 365.4 | 517.3 |
| 465 | 500 | 525 | 74 | 71.4 | 407 | 114 | 72 | 47 | 373 | 372.2 | 525.2 |
| 485 | 515 | 535 | 73.7 | 72 | 407 | 119 | 72 | 47 | 373 | 378.2 | 532.1 |
| 500 | 530 | 545 | 73.7 | 72.5 | 407 | 128 | 72 | 47 | 373 | 383.3 | 542.4 |
| 510 | 540 | 550 | 73.4 | 72.8 | 408 | 136 | 72 | 47 | 373 | 385.3 | 551 |
| 520 | 550 | 557 | 73.4 | 72.8 | 408 | 147 | 72 | 47 | 373 | 389.2 | 561.5 |
| 525 | 560 | 565 | 73 | 73.2 | 409 | 154.5 | 72 | 47 | 373 | 390.8 | 570.1 |
| 540 | 575 | 575 | 73 | 73.7 | 409 | 168 | 72 | 47 | 373 | 396.7 | 584.8 |
| 560 | 595 | 587 | 72.4 | 73.4 | 409 | 204 | 67 | 47 | 373 | 393.4 | 613.2 |
| 600 | 620 | 620 | 72 | 73.4 | 411 | 244 | 67 | 47 | 373 | 410 | 651.6 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
