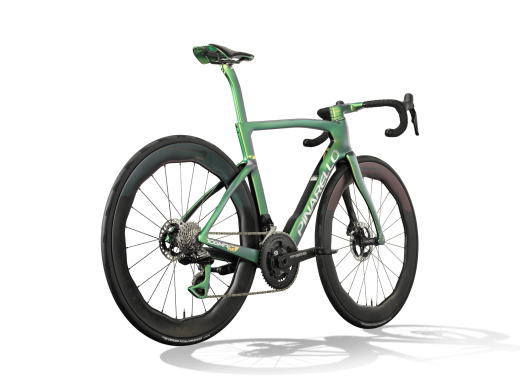

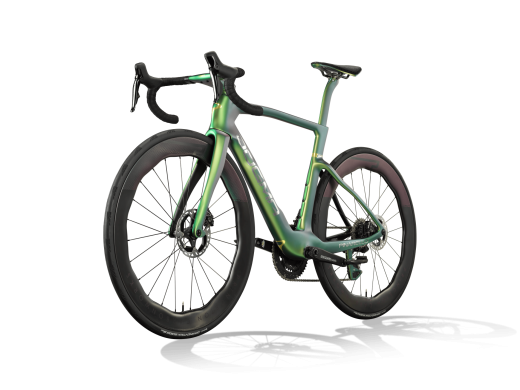

Pinarello New Dogma F 1K DURA ACE Di2 SRM CRANKSET LUXTER GREEN 1K LIMITED EDITION

H110 DISC
DURA ACE Di2 - SRM CRANKSET - LUXTER GREEN 1K
* only 50 complete bikes available only at dealers who took part in the initiative.



PURE LUXURY.

1K is an ultra-exclusive bike, showcasing the mastery of Pinarello’s design and painting expertise, featuring the most advanced technologies and components available on the market.

Each bike in this unique and ultra-exclusive edition will feature the vibrant Luxter Green color on the handlebars, spacers, saddle shell, and rear derailleur cage, resulting in a one-of-a-kind effect.


This series will be limited to 50 hand-numbered bikes.
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST



Geometries

CE	CC	L	A [°]	B [°]	P	T	D	R	G	REACH	STACK
425	430	500	74.4	69.5	407	102	67	47	373	351.5	502
450	465	515	74.4	70.5	407	109	72	47	373	365.4	517.3
465	500	525	74	71.4	407	114	72	47	373	372.2	525.2
485	515	535	73.7	72	407	119	72	47	373	378.2	532.1
500	530	545	73.7	72.5	407	128	72	47	373	383.3	542.4
510	540	550	73.4	72.8	408	136	72	47	373	385.3	551
520	550	557	73.4	72.8	408	147	72	47	373	389.2	561.5
525	560	565	73	73.2	409	154.5	72	47	373	390.8	570.1
540	575	575	73	73.7	409	168	72	47	373	396.7	584.8
560	595	587	72.4	73.4	409	204	67	47	373	393.4	613.2
600	620	620	72	73.4	411	244	67	47	373	410	651.6

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
DRIVETRAIN
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-9200 12S
CASSETTE
Shimano Dura Ace CS-R9200 12S
CHAIN
Shimano Dura Ace CN-HG 12S
BOTTOM BRACKET
Shimano Dura Ace SM-BB9200
BRAKES
FRONT BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
PRINCETON WAKE 6560 EVOLUTION*
AXLES DISC
NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

* Tactic TR01 hubs (ceramic bearings) – exclusive custom color
** Most 3D printed saddle with custom painted frame
*** Pulley Wheels: CeramicSpeed OSPW RS ALPHA with custom painted arm
