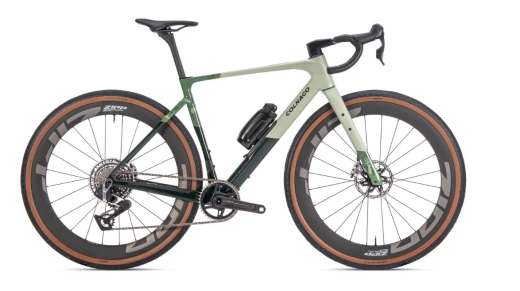

Colnago G5-X SRAM Red XPLR AXS E1 - Carbon Green

Entwickelt, um deine Power freizusetzen und das Gravel zu erleben, von dem du immer geträumt hast.
Die G5-X ist Colnagos Gravel-Bike der nächsten Generation. Keine Weiterentwicklung der G4-X, sondern eine vollständig neue Gravel-Plattform, entwickelt auf Basis einer detaillierten Analyse, wie moderne Gravel-Fahrer tatsächlich fahren – und was sie von ihrem Bike erwarten. Aufbauend auf Colnagos Expertise im Performance-Radsport und seiner unverwechselbaren Handwerkskunst vereint die G5-X fortschrittliche Technologie, präzise Ingenieurskunst und kompromisslose Liebe zum Detail.

Details

Series
G Series

Model
Colnago G5-X

Frame Kit

Frame (Material)
Monocoque carbon

Fork (Material, Section Notes)
Colnago G5-X carbon fork for disc brakes. Fully integrated cables. 28.6-mm steerer tube

Handlebar Set
Integrated headset. Upper and lower bearings 42x52x7 mm; 45°x45°—included in the frame kit

Seatpost
Colnago carbon seatpost, 27.2 mm round profile, -15 mm offset (potentially compatible with Vario seatposts)

Thru-axles
Colnago thru-axles 12x123/170.5 mm. Front: 12 x 100 mm. Rear: 12 x 142 mm UDH standard, threaded Ø12 L170.5 mm

Drivetrain

Rear Derailleur
SRAM RED XPLR AXS E1 1x13

Front Derailleur
(This groupset has a single chainring)

Rear Derailleur
SRAM RED XPLR AXS E1

Chain
SRAM RED XPLR AXS E1

Chainring
SRAM RED XPLR AXS E1 40T

Cassette
SRAM RED XPLR AXS E1 10-46T (13s)

Bottom Bracket
BSA 68 mm

Crankset Length
Sizes 450–480
170 mm

Sizes 520–570
172.5 mm

Brakes

Brakes
SRAM RED XPLR AXS E1 Disc Brakes – SRAM RED XPLR AXS E1 Brake Rotors

Rotor Size
160 mm front / 160 mm rear

Brake Levers
SRAM RED XPLR AXS E1

Brake Calipers
SRAM RED XPLR AXS E1

Wheels

Wheels
Zipp 303 XPLR SW

Material
Carbon – tubeless (Tubeless Straight Side)

Rim Height
54 mm

Internal Channel Width
32 mm

Wheel Hub
Zipp ZR1 Disc Brake, Centerlock brake rotor mount, 66 engagement points

Thru-Axles
Front: HH12-100 - Rear: HH12-142

Tires
Goodyear XPLR Inter TLR 700x50

Maximum Tire Size
Max. 53 mm nominal width (with 6 mm clearance)

Components
Saddle
Selle Italia Novus

Handlebar
CC.01 Wide integrated cockpit (400–460 mm), fully integrated cables

Sizes 450
Width: 400 mm

Sizes 480–540
Width: 420 mm

Sizes 570
Width: 440 mm

Handlebar Mount
Integrated cockpit (CC.01 Wide)

Sizes 450–480
Length: 90 mm

Sizes 510
Length: 100 mm

Sizes 540–570
Length: 110 mm

Handlebar tape
Colnago Grip Black

Bottle cages
Removable Colnago down tube plate for access to the internal storage compartment. Mounts compatible with standard bottle cages or the FIDLOCK® system—3 FIDLOCK® Twistlock mounts included

Other accessories
Internal storage compartment in the down tube (bag and repair kit not included). 6 mounting points: 2 standard bottle cages, 1 under the down tube, 1 on the top tube, 2 on the fork for bottle/cargo mounts. UDH-compatible. Chainring clearance: 1x up to 50T; 2x all gravel chainrings, road only Compact and Super-Compact
