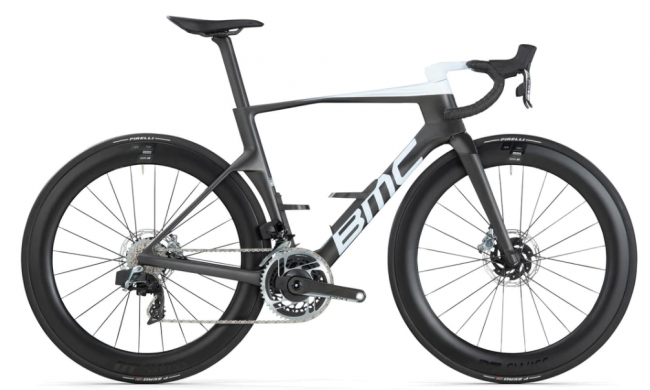

BMC Teammachine R 01 LTD SRAM Red eTap AXS Carbon Black / Cool White

Spezifikationen

Rahmenset

• Rahmen:

Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

• Gabel:

Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

Cockpit

• Lenker:

ICS Carbon Aero | One-Piece Full Carbon Cockpit

• Sattelstütze:

Teammachine R 01 Premium Carbon Seatpost 10mm Offset

• Sattel:

Fizik Argo Vento R1 (140mm)

Antrieb

• Übersetzung:

2x12

• Kurbel:

SRAM RED 48-35T Power Meter

• Kassette:

SRAM RED XG1290 10-28T

• Kette:

SRAM RED 12 Speed

• Umwerfer:

SRAM RED eTap AXS

• Schaltwerk:

SRAM RED eTap AXS

• Schalthebel:

SRAM RED eTap AXS

Bremsen

• Bremshebel:

SRAM RED eTap AXS

• Bremsscheiben:

SRAM Centerline XR 160 / 160 mm - Centerlock

Räder

• Felgen:

DT Swiss ARC 1100 62mm

• Naben (V/H):

DT Swiss 180 Straightpull - Ratchet EXP 36 - SINC Ceramic Bearings

• Bereifung:

Pirelli P-Zero Race SL TLR, 26mm

• Tubeless-Informationen:

Tubeless Ready Rims / Tubeless Tires

Zubehör
Aerocore Bottle Cages
Weitere Informationen
Maximale Reifengrösse:
30mm (Measured Width)

• ASTM-Klassifizierung:

Level 1

• Gewichtsgrenze:

110 Kg

Geometrie

Size 47 51 54 56 58 61 Rider Height <166 166-174 172-180 178-186 184-192 >190 Reach 368 378 387 393 402 409 Stack 504 528 548 563 582 608 Bar Reach 72.5 72.5 72.5 72.5 72.5 72.5 Bar Width 360/420 360/420 360/420 360/420 360/420 360/420 BB Drop 69 69 69 69 69 69 Crank Length 170 170 172.5 172.5 175 175 Fork Length 367 367 367 367 367 367 Fork Rake 48 48 43 43 43 43 Front Center 568 586 589 599 614 630 Head Tube 108 133 149 165 185 211 Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3 Rear Center 410 410 410 410 410 410 Seat Angle 74 74 73.5 73.5 73 73 Seat Tube 418 463 499 519 541 570 Seatpost Length 335 335 385 385 405 405 Seatpost Offset 10 10 10 10 10 10 Stem Angle -15 -15 -15 -15 -15 -15 Stem Length 90 100 100 110 110 120 Top Tube 522 532 552 562 582 598 Trail 63 63 63 63 63 63 Wheelbase 968 986 989 999 1015 1030
