Produktbeschreibung
Frameset
Frame:

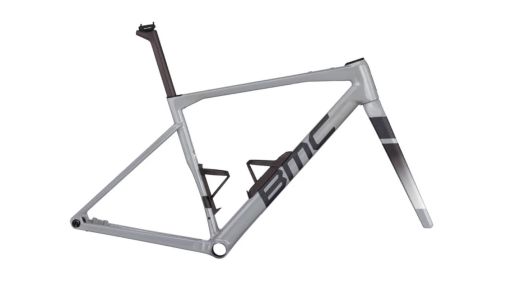

Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Seat
Seatpost:
Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Accessories
In the Box:
Aerocore Bottle Cages | SRAM UDH hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers)
Additional Information
Tire Clearance:
44mm
Weight without Pedals:
1.8 Kg | including headset, bottle cages and hardware
ASTM Classification:
Level 2
System Weight Limit:
120kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 390 | 397 | 401 | 405 | 410 | 414 |
| Stack | 510 | 530 | 550 | 570 | 595 | 620 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
| Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
| Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
| Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
| Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
| Trail | 68 | 68 | 68 | 68 | 68 | 68 |
| Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
