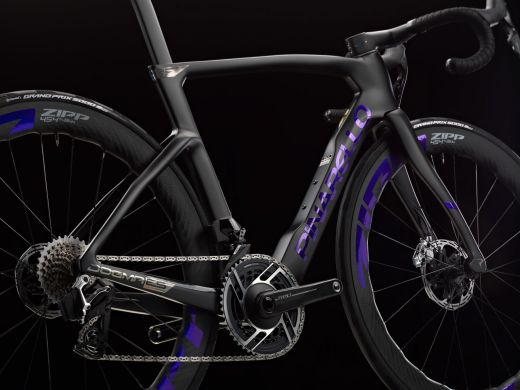

Pinarello New Dogma F DOGMA F SRAM RED AXS E1 H051 EDIZIONE SPECIALE TISSOT
Art.Nr.: 103695-003
* Availability is limited to dealers who took part in the initiative.
ONE MONUMENT, TWO EXPRESSIONS OF PRECISIONS
Just 101 Tissot DOGMA F bikes have been produced, each one featuring an exclusive Carbon-Matt colourway complemented by Hologram Purple and Mirror decals on the down tube, seat tube and chainstay.
Matching Zipp WH454 NSW wheels also include the same Hologram Purple decals found on the frame, with the top tube bedecked with a dual-branded lock-up logo and striking graphic designed to evoke the passage of time.
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST
ALL COMPONENTS
FRAME SETFRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
WEIGHT
6.63kg. Weight in size 53, SRAM RED Etap, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
SRAM Red ETAP AXS 12S
FRONT DERAILLEUR
SRAM Red ETAP AXS 12S
REAR DERAILLEUR
SRAM Red ETAP AXS 12S
CASSETTE
Sram Red XG-1290
CHAIN
SRAM Red
BOTTOM BRACKET
SRAM Red
BRAKES
FRONT BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
ZIPP WH 454 Custom Decal
AXLES DISC
NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black
Geometries
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 407 | 102 | 67 | 47 | 373 | 351.5 | 502 |
| 450 | 465 | 515 | 74.4 | 70.5 | 407 | 109 | 72 | 47 | 373 | 365.4 | 517.3 |
| 465 | 500 | 525 | 74 | 71.4 | 407 | 114 | 72 | 47 | 373 | 372.2 | 525.2 |
| 485 | 515 | 535 | 73.7 | 72 | 407 | 119 | 72 | 47 | 373 | 378.2 | 532.1 |
| 500 | 530 | 545 | 73.7 | 72.5 | 407 | 128 | 72 | 47 | 373 | 383.3 | 542.4 |
| 510 | 540 | 550 | 73.4 | 72.8 | 408 | 136 | 72 | 47 | 373 | 385.3 | 551 |
| 520 | 550 | 557 | 73.4 | 72.8 | 408 | 147 | 72 | 47 | 373 | 389.2 | 561.5 |
| 525 | 560 | 565 | 73 | 73.2 | 409 | 154.5 | 72 | 47 | 373 | 390.8 | 570.1 |
| 540 | 575 | 575 | 73 | 73.7 | 409 | 168 | 72 | 47 | 373 | 396.7 | 584.8 |
| 560 | 595 | 587 | 72.4 | 73.4 | 409 | 204 | 67 | 47 | 373 | 393.4 | 613.2 |
| 600 | 620 | 620 | 72 | 73.4 | 411 | 244 | 67 | 47 | 373 | 410 | 651.6 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
Optionen:
- Größe: 56
Preis:
16.500,00 EUR
inkl. 19 % MwSt. zzgl. Versandkosten
