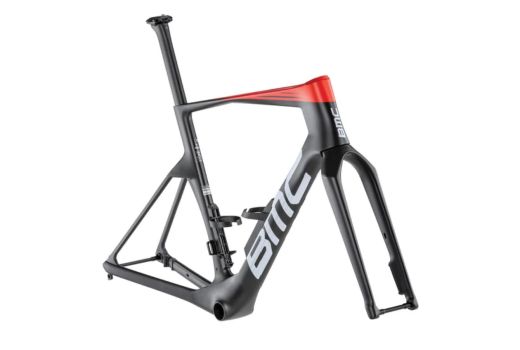

BMC Teammachine R 01 Frameset VAR1 Carbon / Neon Red
Art.Nr.: 103598
Für das leichteste Bike oder eine einzigartige Lackierung: Baue dein Traum-Rennrad aus diesem Carbon-Rahmenset in VAR0-Ausführung. Die individuellste Variante.
Rahmenset
Rahmen:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Gabel:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Sattel
Sattelstütze:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
Zubehör
Lieferumfang:
Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger
Weitere Informationen
Reifenfreiheit:
30mm
Gewicht ohne Pedale:
1.780kg | Size 54 with all accessories
ASTM-Klassifizierung:
Level 1
Maximales Systemgewicht:
110kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack | 504 | 528 | 548 | 563 | 582 | 608 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
| Standover Height | 721 | 755 | 781 | 799 | 813 | 836 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
Preis:
4.999,00 EUR
inkl. 19 % MwSt. zzgl. Versandkosten
